Features:
1. High conversion efficiency (energy efficiency VI)
2. Protection: OCP, OVP, OTP
3. EMC regulatory certification
4. RoHS&REACH
5. Support customized power supply
Output:
| Voltage |
12-15.0V |
15.1-20.5V |
20.6-28.0V |
28.1-37.0V |
37.1-45.0V |
45.1-58V |
| Current |
0.01-21A |
0.01-17A |
0.01-13.2A |
0.01-9.0A |
0.01-7.0A |
0.01-5.5A |
| Power max |
252W |
262.2W |
264.6W |
264.6W |
264.6W |
265.2W |
Safety approvals
GB4943.1-2011,GB8898-2011,GB4706.1-2005,GB19510,EN61347,EN62368,EN61558,K60950,J62368, J61558, UL62368, AS/NZS 62368,AS/NZS 61558.
EMC
GB17625.1-2012, GB/T9254-2008, GB/T13837-2012, GB/T17625.1-2007, GB4343.1-2018, EN55032,EN55035, EN55014, EN61000, KN-32/35,FCC Part 15
Input:200-240VAC 50/60Hz 3.5A
| Voltage |
24.0-28.0V |
28.1-37V |
37.1-45.0V |
45.1-58V |
| Current |
0.01-14.6A |
0.01-11.5A |
0.01-8.5A |
0.01-7.3A |
| Power max |
350.5W |
350.5W |
350.5W |
350.5W |
Safety approvals
GB4943.1-2011,B8898-2011 ,GB4706.1-2005
EMC
GB17625.1-2012,GB/T9254-2008,GB/T13837-2012,GB/T17625.1-2007,GB4343.1-2018

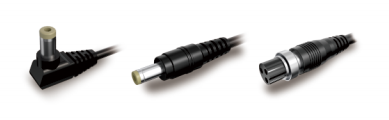

DC connector
