The Heart of Power Reliability and Why Electrolytic Capacitors Determine Switch-Mode Power Supply Lifespan
Introduction
The Component Longevity Paradox
Large-scale manufacturing plants and high-tech clinical facilities rely on massive automation setups to maintain round-the-clock productivity. Within these complex systems, thousands of individual mechanical and electrical assemblies work together to execute high-precision movements. When an unexpected system failure brings an entire assembly line to a costly standstill, field technicians often trace the root cause back to a tiny component hidden inside the power conversion module. This scenario illustrates the component longevity paradox, where the durability of an investment worth millions depends entirely on a small passive component costing only a fraction of a dollar. Industrial operations require a deep understanding of these hidden failure points to ensure continuous uptime and protect significant capital investments.
The Weakest Link in Power Conversion
Evaluating the Mean Time Between Failures for electronic equipment requires a careful look at the operational lifespan of every item on the internal power supply components list. Silicon power switches, surface-mount ceramic resistors, and planar magnetic transformers are highly resilient, often operating for decades under stable conditions. Aluminum electrolytic capacitors stand out as the primary wear-out mechanism on the power supply components list due to their specific chemical makeup. These components serve as essential energy storage reservoirs and ripple filters, but their reliance on liquid chemical reactions makes them uniquely vulnerable to aging. Consequently, the operational lifespan of a heavy-duty ac/dc industrial power supply depends largely on the preservation of these specialized capacitors.
Article Objective
This technical guide provides hardware architects, system integration engineers, and procurement executives with an objective, data-driven analysis of capacitor degradation mechanisms. Examining physical layout strategies, thermal modeling parameters, and component grading standards reveals the critical paths to achieving reliable long-term operations. The insights presented here help teams make informed decisions during vendor evaluation, technical asset procurement, and preventative maintenance scheduling.
The Physical and Chemical Failure Mechanisms of Electrolytic Capacitors
Liquid Electrolyte Limitations
Solid-state transistors and industrial ceramic resistors utilize solid, non-reactive materials to manage electrical currents. Aluminum electrolytic capacitors depend on an internal structure consisting of high-purity aluminum foil anodes and a liquid conduction electrolyte. This liquid chemical mixture provides the high capacitance per unit volume needed to filter large amounts of rectifying energy. Operating an ac/dc industrial power supply exposes this internal liquid mixture to continuous high-frequency currents and voltage shifts. This demanding operating environment places severe electrical and thermal stress on the chemical bonds of the fluid, accelerating physical degradation far beyond that of nearby solid components.
The Dry-Out Phenomenon
The gradual loss of the liquid conduction medium represents the most common wear-out phase in high-performance power conversion electronics. Internal heat spikes caused by high ripple currents and ambient factory conditions convert the liquid electrolyte into a high-pressure vapor. Over years of continuous operation, this vapor slowly escapes through the microscopic pores of the rubber sealing bung at the base of the capacitor shell. This slow loss of material reduces the active fluid volume needed for proper electrical conduction. This process, known as capacitor dry-out, continues silently until the internal fluid level falls below the critical threshold required for normal operation.
The Parameter Degradation Chain Reaction
Capacitance Value Loss
As the internal liquid electrolyte dries out, the active surface area of the conductive plates decreases significantly. This change triggers a steady decline in the total capacitance value of the component. When the capacitance falls below critical operational levels, the module loses its ability to store sufficient energy between switching cycles, leading to unstable performance during sudden load changes.
Escalation of Equivalent Series Resistance
Alongside the loss of capacitance, the shrinking volume of the liquid electrolyte increases internal electrical resistance. This change causes a rapid rise in Equivalent Series Resistance within the capacitor structure. This increased internal resistance forces the component to generate more heat during normal operation, accelerating the dry-out process in a destructive feedback loop.
Output Ripple and Protection Shutdown
The combination of diminished capacitance and elevated internal resistance reduces the filtering capability of the component. The power conversion unit then outputs an excessive amount of voltage ripple and high-frequency noise into the downstream system. This electrical noise can disrupt sensitive control electronics, eventually triggering the system's over-voltage or over-current protection mechanisms and forcing a complete shutdown.
Quantifying Lifespan and The Critical Influence of the Ten-Degree Celsius Rule
The Arrhenius Chemical Reaction Principle
The aging rate of an aluminum electrolytic capacitor follows fundamental laws of chemical kinetics rather than standard mechanical wear models. The Arrhenius equation states that the speed of a chemical reaction increases significantly with temperature. In power electronics, this principle applies directly to the evaporation rate of the liquid electrolyte inside the capacitor casing. Higher internal temperatures provide more thermal energy to the fluid molecules, accelerating their movement and increasing the pressure against the rubber sealing bung. This physical relationship connects environmental heat directly to the degradation rate of the component.
The Ten-Degree Celsius Rule Explained
The complex chemical behavior described by the Arrhenius principle can be applied to real-world engineering through a practical guideline known as the Ten-Degree Celsius Rule. This rule states that for every thermal increase of ten degrees Celsius within the power supply chassis, the internal chemical reaction speed doubles. This acceleration doubles the evaporation rate of the liquid electrolyte, cutting the overall service life of the capacitor precisely in half. Conversely, reducing the internal operating temperature by ten degrees Celsius slows the chemical aging process sufficiently to double the operational lifespan of the component. This relationship highlights why thermal management is a critical factor in extending system reliability.
Case Comparison Study
Scenario A: Premium Sourcing in an Optimized Environment
A premium capacitor rated for ten thousand hours at one hundred and five degrees Celsius is integrated into a well-ventilated, cooler environment. The structural layout provides clear airflow channels, keeping the internal temperature near sixty-five degrees Celsius. Applying the Ten-Degree Celsius Rule shows that this lower temperature extends the component's lifespan well past sixteen times its nominal rating, delivering decades of reliable service.
Scenario B: Poor Enclosure Layout and Accelerated Dry-Out
The identical premium component is placed in an unvented enclosure next to a hot power transistor. Trapped heat pushes the local temperature up to ninety-five degrees Celsius. This added thermal stress accelerates electrolyte dry-out, causing the capacitor to fail shortly after the warranty period expires and highlighting the importance of proper system design.
Mitigating LED Panel Light Flickering Through Premium Capacitance Selection
The Link Between Capacitors and Light Quality
Commercial facilities frequently encounter problems with commercial lighting installations, most notably led panel light flickering. This unstable light output often traces back to the primary power unit rather than the light-emitting diodes themselves. Connecting the items on the internal power supply components list to these visible lighting errors reveals that the output smoothing capacitors are critical to maintaining light quality. When these capacitors fail to deliver smooth, stable power, the connected lighting fixtures display distracting light shifts that can cause eye strain and disrupt automated vision inspection systems.
How Ripple Current Translates to Visible Flaws
As input and output filtering capacitors age, their ability to smooth out the rectified alternating current drops significantly. This degradation allows residual ripple current to enter the constant-current driver stage. The driver circuit struggles to regulate output current when fed with this unstable electrical input, passing the power fluctuations directly to the LED arrays. The light output then mirrors these current shifts, causing visible led panel light flickering that compromises the building's lighting quality.
The Industrial Solution

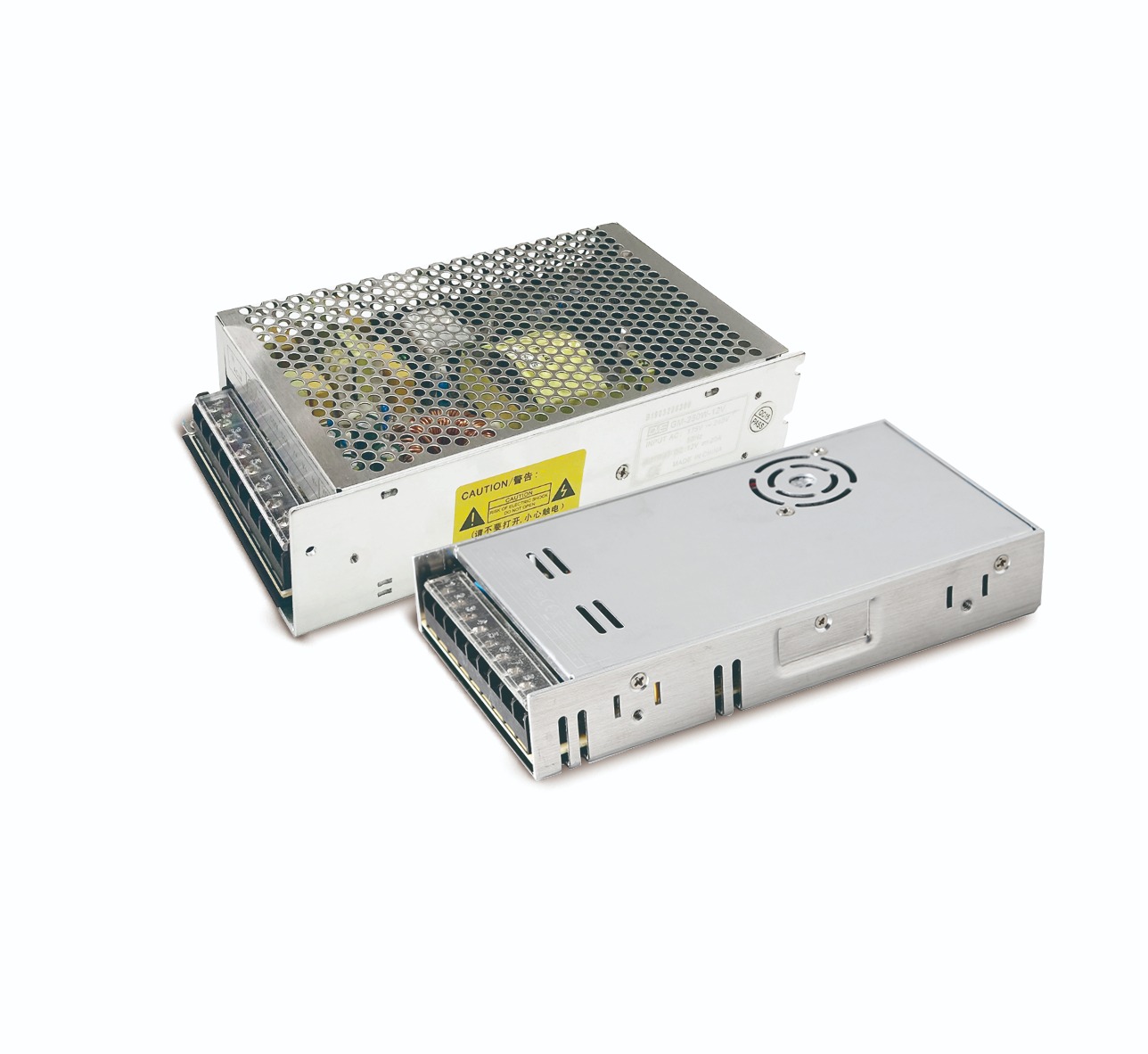

Resolving these lighting issues requires a systematic approach to led troubleshooting that targets the root cause of the power instability. Deploying a heavy-duty, double-stage ac/dc industrial power supply built with ultra-low Equivalent Series Resistance capacitors provides a reliable solution. This high-grade hardware configuration ensures a clean, stable direct-current output line that shields the light-emitting diodes from voltage shifts. Resolving these power issues provides permanent led troubleshooting relief, eliminating micro-flicker and protecting sensitive digital camera networks from line interference.
System-Level Architecture and Thermal Layout and Soft-Switching Topologies
The Art of Component Layout Insulation
Extending capacitor lifespan requires more than simply purchasing high-grade components; it demands careful printed circuit board layout planning. Design engineers must implement strict physical separation rules to shield vulnerable electrolytic capacitors from internal heat sources. High-temperature components, such as power MOSFETs, magnetic transformers, and power rectifiers, should be grouped downwind of sensitive capacitors. Incorporating wide thermal isolation slots and dedicated copper heat-sink zones helps dissipate thermal energy away from the capacitors, keeping internal chemical fluid levels stable.
Efficiency as a Thermal Shield
Advanced circuit designs help protect sensitive capacitors by reducing heat generation at the source. Implementing soft-switching topologies, such as LLC resonant converters or Active Clamp Flyback systems, minimizes energy loss during transistor transitions. Achieving high efficiency ratings reduces the amount of waste heat trapped inside the chassis. This lower operating temperature protects the entire power supply components list from thermal stress, slowing down capacitor aging and extending the overall service life of the system.
The B2B Economic Perspective and Total Cost of Ownership vs Initial Bill of Materials
The Low-Cost Trap
Procurement teams are often tempted to select low-cost power hardware to reduce initial production expenses. These cheaper power units typically save money by using low-grade capacitors rated for short operational lifespans and minimal temperature exposure. While this reduces the upfront bill of materials cost, it introduces a significant risk of early system failure. This approach trades long-term reliability for short-term savings, often leading to higher overall costs when the low-grade components fail prematurely in the field.
The Real Cost of Field Failures
A power module failure in a factory setting carries financial consequences that extend far beyond the price of a replacement unit. Unexpected system downtime can halt production lines, disrupting supply chains and causing significant financial losses. Furthermore, sending technicians for on-site repairs and paying international shipping fees for replacement parts creates an expensive logistical burden. Investing in high-grade power equipment with reliable component listings avoids these secondary expenses, lowering the total cost of ownership over the lifetime of the installation.
Brand Reputation Protection
For original equipment manufacturers, the reliability of third-party power components directly impacts the reputation of their entire product line. Continuous equipment failures caused by degraded capacitors can damage customer trust and lead to warranty disputes. Choosing an ac/dc industrial power supply built with premium, high-temperature components helps manufacturers avoid these issues, protecting their brand reputation and reinforcing their standing in competitive industrial markets.
Power Interface Specifications
To assist integration engineers during field deployment, the standardized AC connection parameters and international power cord adapter types are detailed below:
Input Wiring Configuration
The input power infrastructure utilizes a standard three-wire layout consisting of a Brown or Black insulation layer for the Line connection, a Blue or White insulation layer for the Neutral connection, and a Green with Yellow Stripe insulation layer for the Protective Earth channel.
Global Connector Compatibility Reference
The system enclosure accepts standard IEC 60320 C14 power inlets, enabling international deployment by changing the external line cord to match local power cord adapter types. Type A and Type B plugs manage standard grounding compliance across North American regional power grids. Type E, Type F, and Type G connectors provide integrated earthing connections suitable for high-surge networks throughout Europe and the United Kingdom. Type I connectors support secure mechanical termination across major Asia-Pacific industrial infrastructure regions, allowing a single power core to operate globally.
Conclusion
Summary of Key Takeaways
Achieving long-term reliability in power conversion requires careful attention to component selection, thermal layout design, and electrical protection schemes. Because aluminum electrolytic capacitors are uniquely vulnerable to thermal and chemical wear, their operating conditions define the lifespan of the entire system. Protecting these components through efficient soft-switching designs, strategic physical positioning, and strict component derating guidelines ensures stable performance and prevents unexpected system downtime in demanding commercial installations.
The Brand Advantage
Building durable power infrastructure requires engineering expertise and access to high-quality components. As an established manufacturer specializing in advanced power conversion technology, GVE provides premium, globally certified switching power solutions engineered to meet strict industrial and commercial standards. Every module we produce utilizes high-temperature, long-life components configured to deliver excellent efficiency and thermal stability. Contact the engineering team at GVE today to discuss your project requirements and optimize your system infrastructure with our reliable power architectures.
